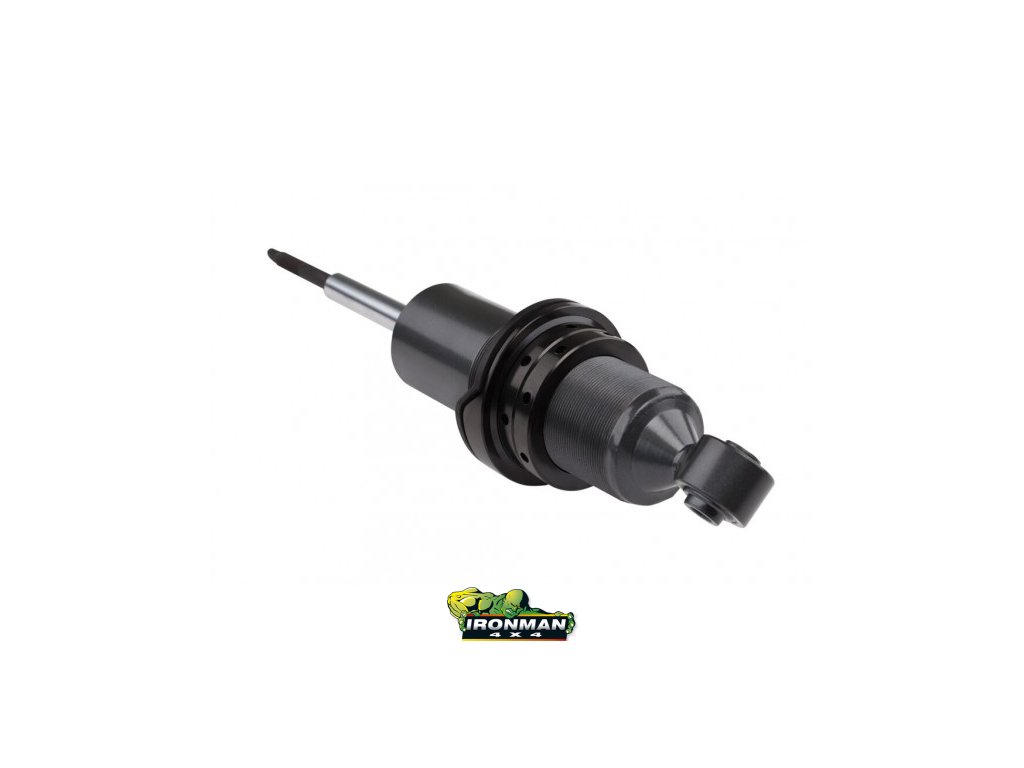

Isuzu D-Max 2012–2016 Front Strut - Foam Cell PRO (45745FE)
Code: 45745FE/15Product detailed description
Range
Foam Cell PRO
Piston
45 mm
Lift
0 to +40 mm
Ride height
adjustable

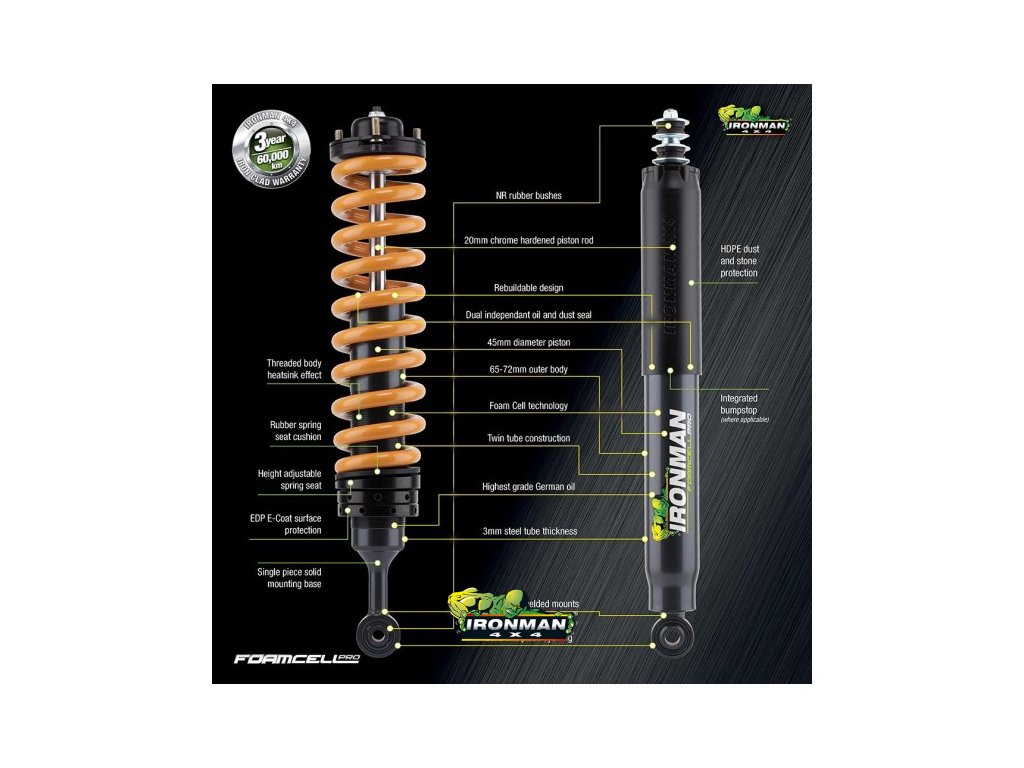

Foam Cell PRO is the strongest shock range from Ironman 4x4. A 45 mm piston, a 3 mm outer tube and more oil keep the shock cooler on long corrugated roads and in rough terrain – it damps just as well at the last kilometre as at the first.
Features

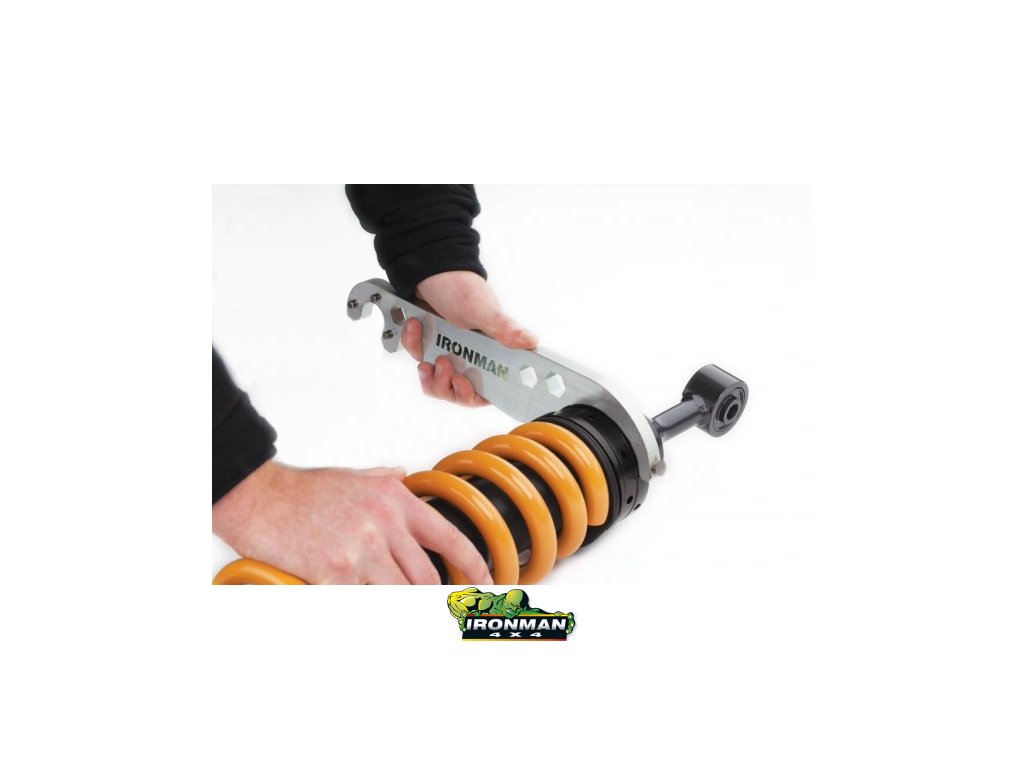

- ✔Threaded spring seat – fine-tune the ride height (standard seat height 190 mm)

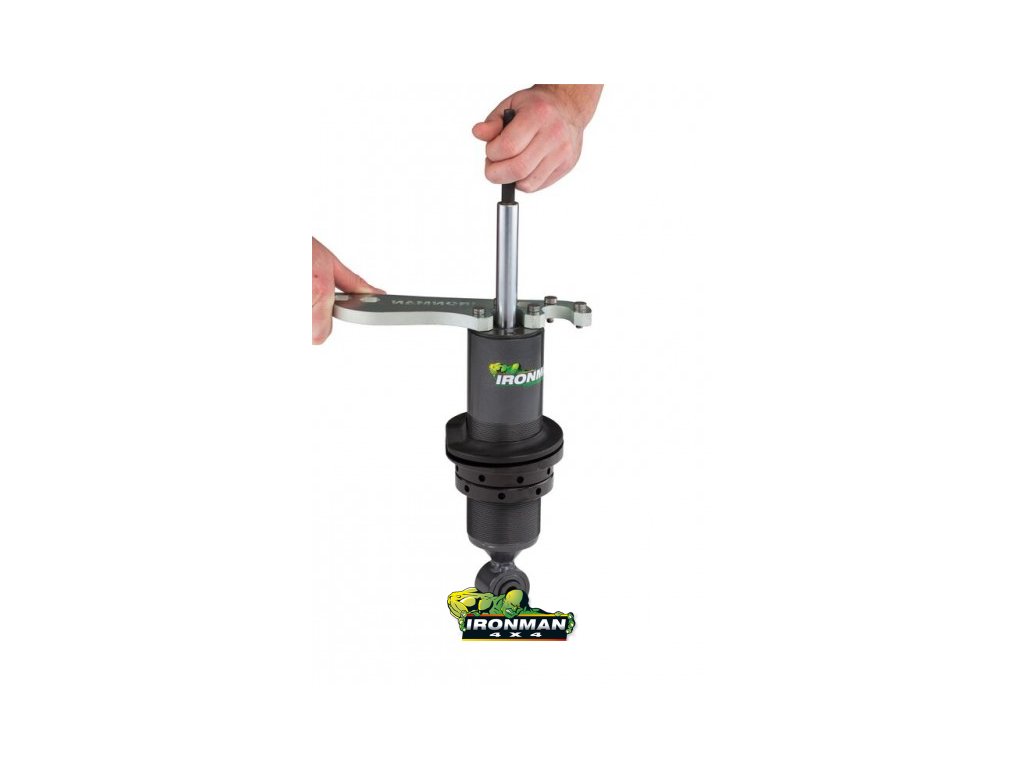

- ✔Fully rebuildable – it can be serviced, not just replaced
- ✔3 mm outer tube, hard-chromed piston rod
- ✔Supplied as a strut only – use your factory spring or an Ironman 4x4 lift spring
Recommended with
- ✔Front springs Medium (HOLD020B) – everyday accessories
- ✔Front springs Heavy (HOLD020C) – bull bar, winch
Technical data
| Type | front strut, twin-tube |
| Range | Foam Cell PRO |
| Valving | Performance |
| Piston diameter | 45 mm |
| Lift | 0 to +40 mm |
| Length extended / compressed | 495 / 359 mm |
| Top mount | STEM 64 × M12 |
| Standard seat height | 190 mm |
| Manufacturer code | 45745FE |
| Qty required | 2 pcs |
| Price per | 1 pc |
Suits
Isuzu D-Max TF II, 6/2012–2016.
Qty required: 2 pcs · Price for: 1 pc
Ironman 4x4 Slovakia
The official Ironman 4x4 importer for Slovakia and the Czech Republic for 25 years. We are happy to help you choose the right parts and can also arrange fitting.
Additional parameters
| Category: | Suspension |
|---|---|
| Weight: | 5 kg |
| MODEL: | D-MAX 6/2012 — 2016 |
| ZNACKA: | ISUZU |
