Toyota Land Cruiser 250 2024+ Suspension Kit Light with IM2.5 Monotube Shocks (TOY125AKM)
Code: TOY125AKM/136Product detailed description
Lift
+50–75 / +50 mm
Load rating
Light
Shocks
IM2.5 Monotube
Added load
0–150 / 0–200 kg
The premium Ironman 4x4 IM2.5 Monotube suspension kit for the Toyota Land Cruiser 250 – aluminium coilovers and shocks with excellent cooling, tuned for maximum comfort and control on and off-road.
Who is Light for
For a Land Cruiser with lighter accessories (e.g. side steps, a light bar) and an occasional load. The vehicle is lifted, feels firmer and more planted and returns to optimum height when unloaded.
ℹ️ On a vehicle with a bull bar and winch the front lifts 2" (50 mm). Without front accessories the vehicle will lift 3" (75 mm) unless the coilover height is adjusted before fitting. Above 2" the forged upper control arms are mandatory – they are included in the kit.
Why aluminium
- ✔2.5" (63.5 mm) body of extruded 6061-T6 aerospace aluminium, hard anodised
- ✔Aluminium sheds heat up to 4× better than steel – no fade under long, hard use
- ✔CNC-machined 57 mm billet aluminium piston with low-speed bleed ports for a smooth ride
Kit contents
| Part | Code | Qty | |
|---|---|---|---|
| ✔ | Front coilover IM2.5 Monotube | 71-057-027 | 2 pcs |

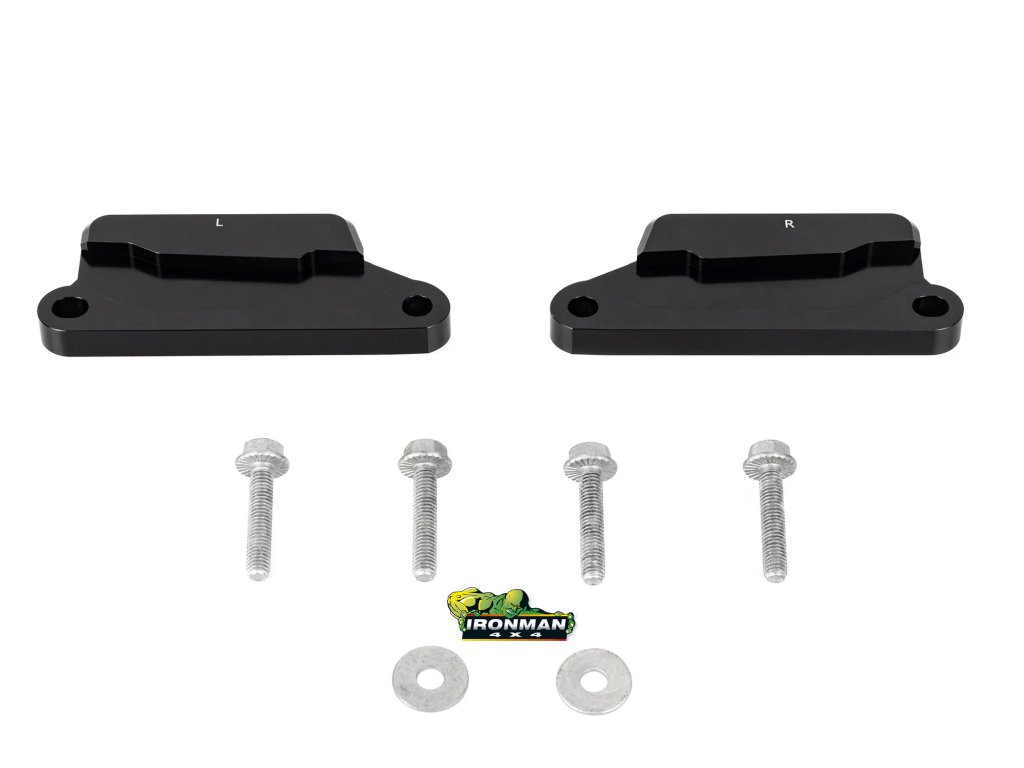

| ✔ | Front diff drop kit | 1244K | 1 kit |
| ✔ | Rear shocks IM2.5 Monotube | 72-057-884 | 2 pcs |
| ✔ | Rear bump stop kit | 09-100-003 | 1 kit |
| ✔ | Rear coil springs Light, black | TOY094A-B | 1 pair |
| ✔ | Pro Forge forged upper control arms | UCA119A | 1 kit |
Other kit versions
- ✔Medium with Accessories kit IM2.5 Monotube (TOY125BKM)
- ✔Heavy kit IM2.5 Monotube (TOY125CKM)
- ✔Light kit Foam Cell PRO (TOY125AKP)
Technical data
| Estimated lift | front +50 to 75 mm, rear +50 mm |
| Added load capacity | front 0–150 kg, rear 0–200 kg |
| Load rating | Light |
| Shock absorbers | Monotube IM2.5 |
| Manufacturer code | TOY125AKM |
| Price per | kit |
Suits
Toyota Land Cruiser 250 (Prado 250), 2024 onwards.
Price for: kit
Ironman 4x4 Slovakia
The official Ironman 4x4 importer for Slovakia and the Czech Republic for 25 years. We are happy to help you choose the right parts and can also arrange fitting.
Additional parameters
| Category: | Sady podvozkov |
|---|---|
| Weight: | 60 kg |
| MODEL: | LAND CRUISER 250 |
| ZNACKA: | TOYOTA |
