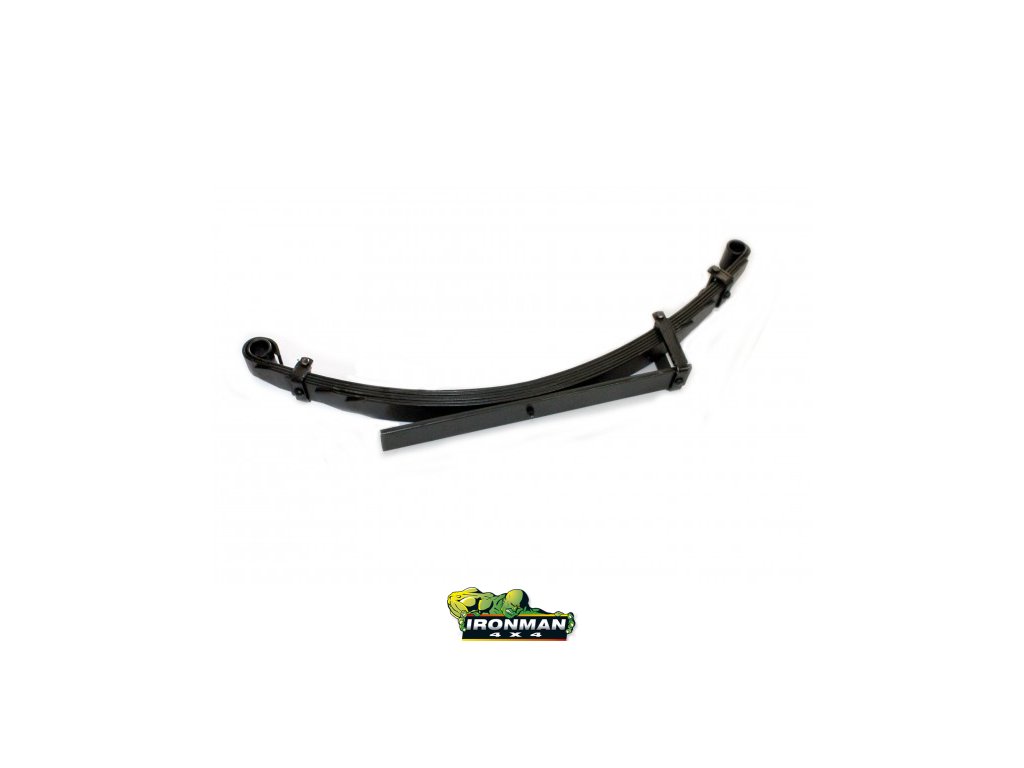

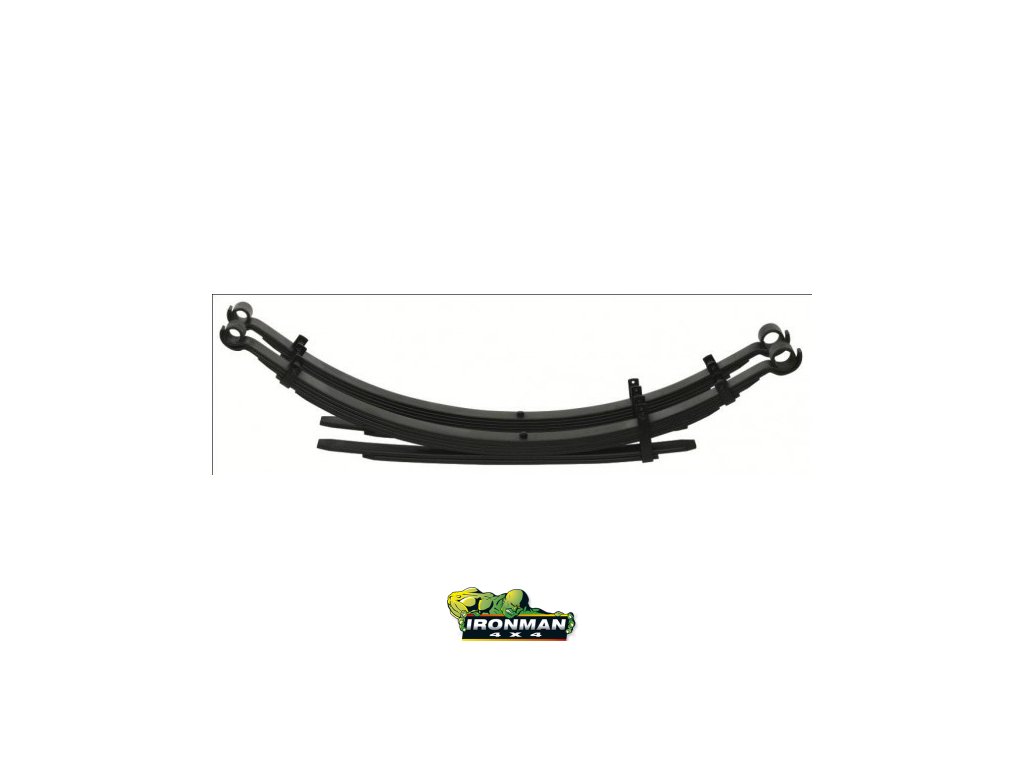

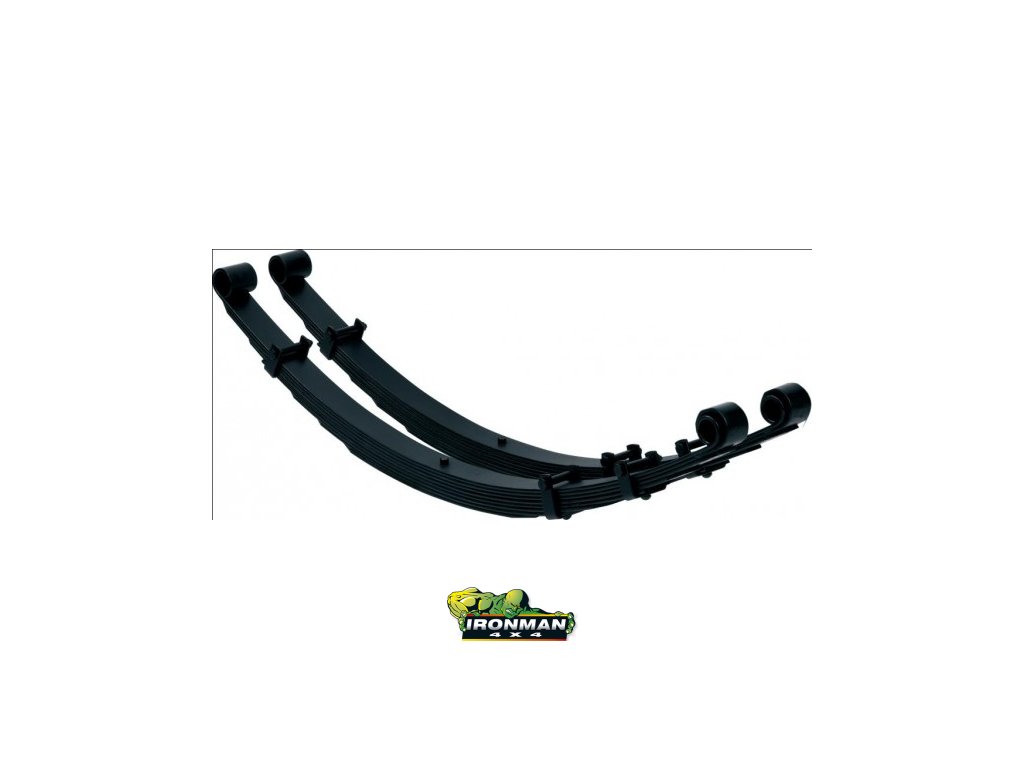

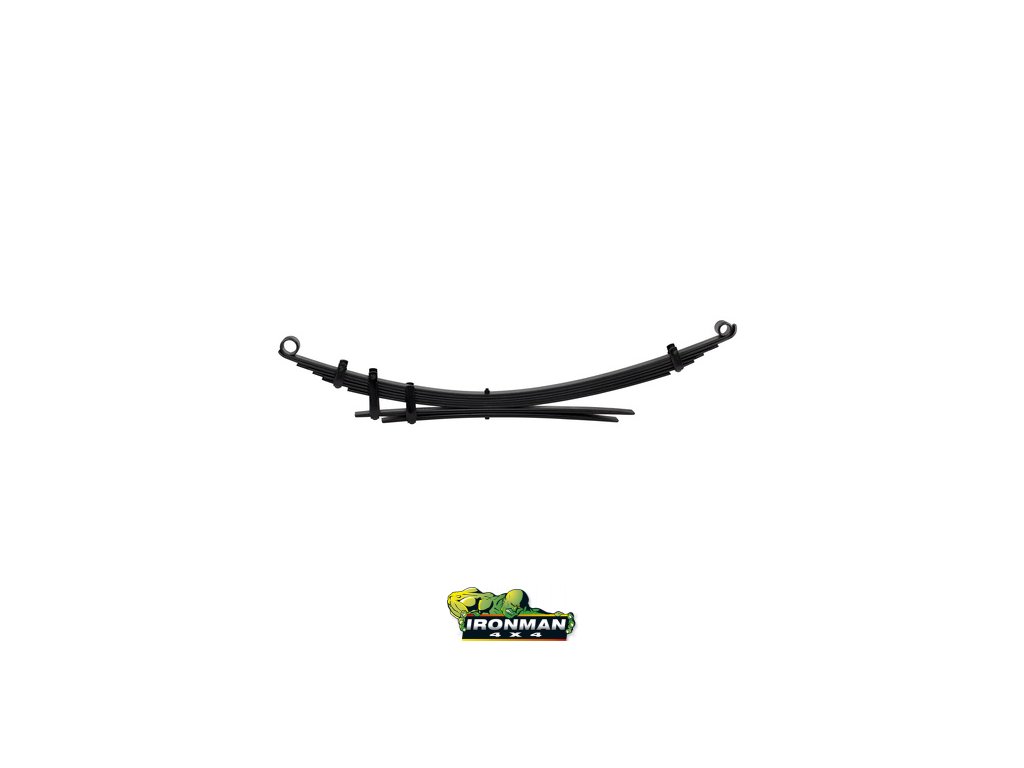

Toyota Hilux Revo 2015+ Rear Leaf Springs - Extra Heavy (TOY077D)
Code: TOY077D/122Product detailed description
Lift
+45 mm
Load rating
Extra Heavy
Added load
600–900 kg
Leaves
6 + 2
The strongest Extra Heavy leaf springs for a Hilux that permanently carries a very heavy load combined with heavy equipment – e.g. a work vehicle with a canopy and tools. Empty, the ride will be very firm.

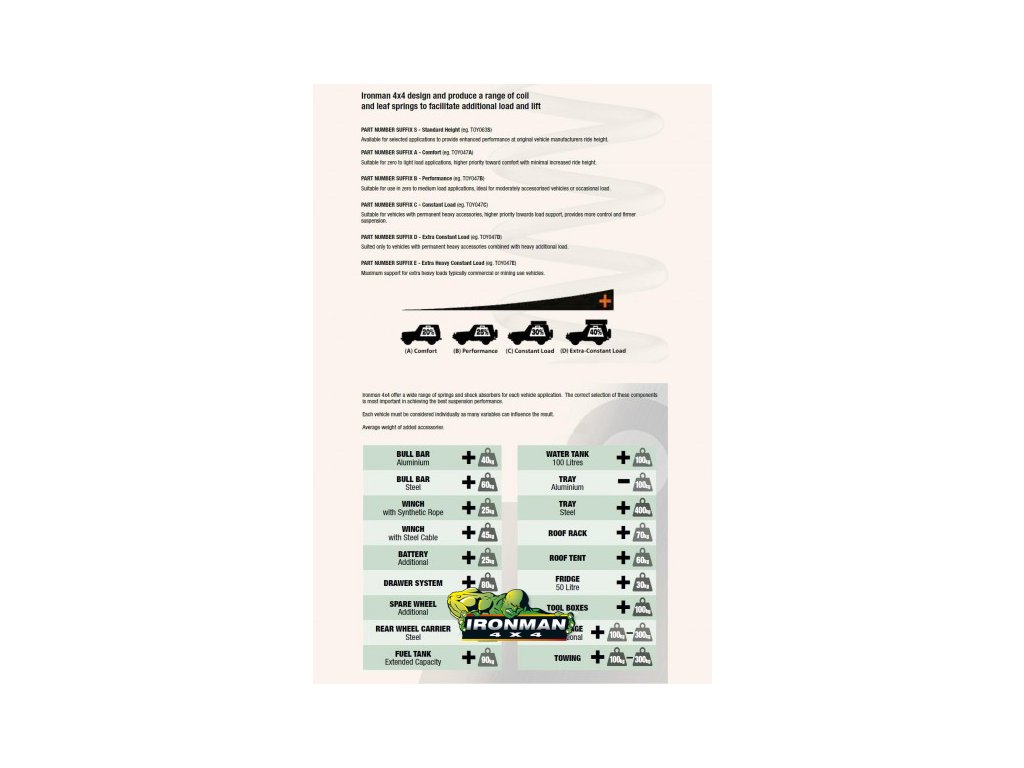

ℹ️ The manufacturer has renamed its load ratings: Extra Heavy = formerly Extra Constant Load.
ℹ️ The manufacturer notes that new 387-1 pins may be needed when changing the springs – the original pins sometimes have to be cut off for removal.
Other load ratings
- ✔Rear springs Medium (TOY077B) – 0–200 kg
- ✔Rear springs Heavy (TOY077C) – 300–600 kg
You will also need
- ✔Rear U-bolt kit (437UBKL) – 2 kits
- ✔Polyurethane spring bush kit (767UK) – 1 kit
Technical data
| Type | rear leaf springs |
| Load rating | Extra Heavy |
| Estimated lift | +45 mm |
| Added load capacity | 600–900 kg |
| Number of leaves | 6 + 2 |
| Leaf width | 60 mm |
| Length A / B | 700 / 700 mm |
| Camber | 170 mm |
| Eye A / B | 40 / 30 mm |
| Manufacturer code | TOY077D |
| Qty required | 2 pcs |
| Price per | 1 pc |
Suits
Toyota Hilux Revo (8th gen, AN120/AN130), 2015 onwards.
Qty required: 2 pcs · Price for: 1 pc
Ironman 4x4 Slovakia
The official Ironman 4x4 importer for Slovakia and the Czech Republic for 25 years. We are happy to help you choose the right parts and can also arrange fitting.
Additional parameters
| Category: | Suspension |
|---|---|
| Weight: | 40 kg |
| MODEL: | HILUX REVO 2015 » |
| ZNACKA: | TOYOTA |
