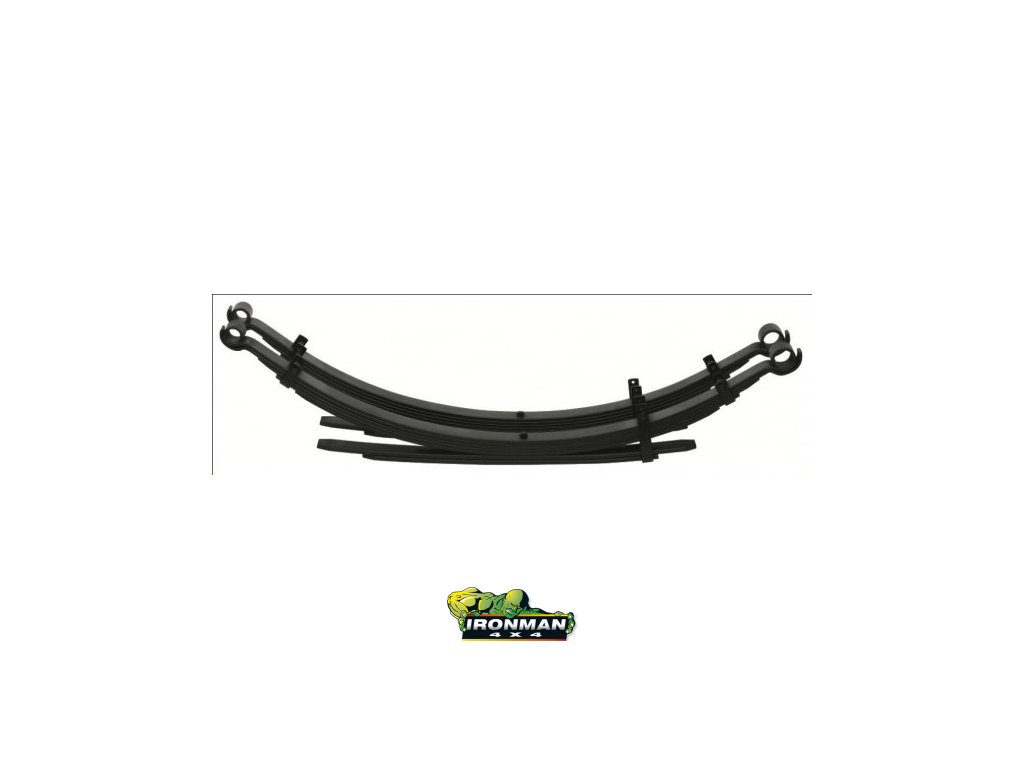

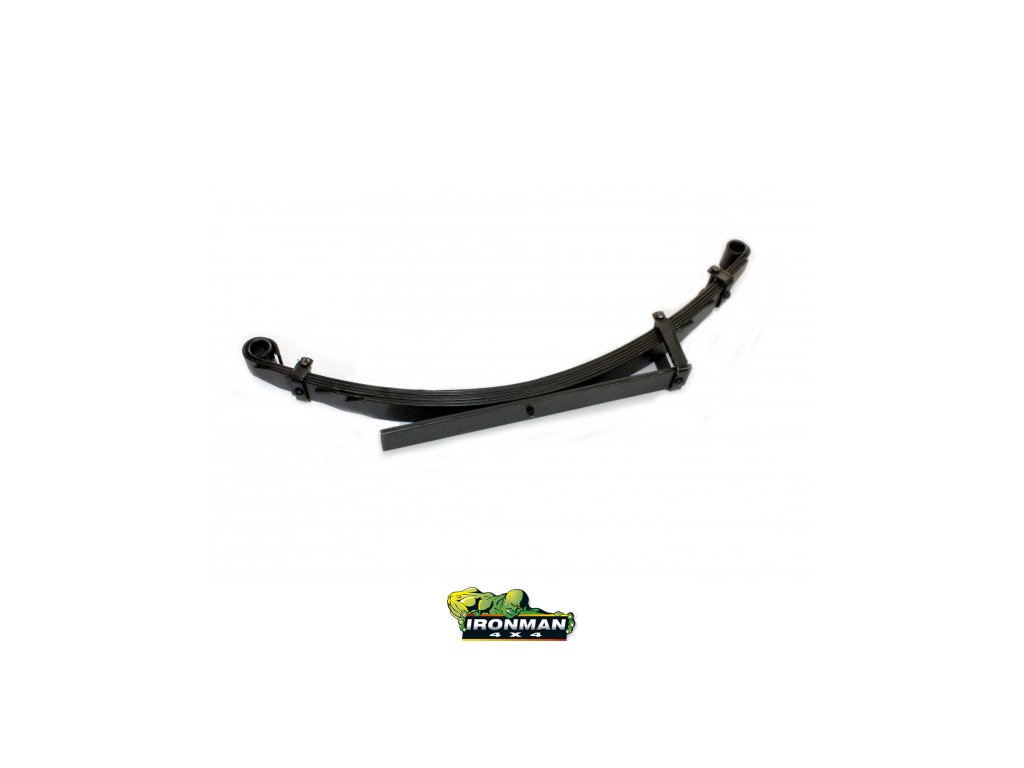

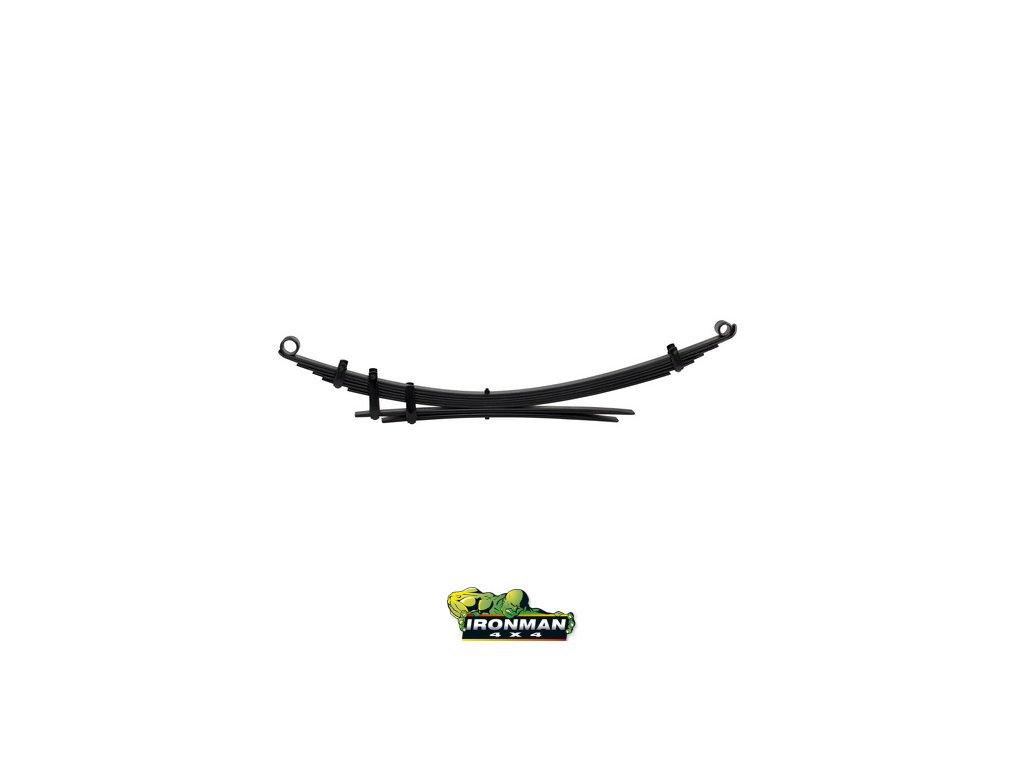

Toyota Hilux Revo 2015+ Rear Leaf Springs - Heavy (TOY077C)
Code: TOY077C/122Product detailed description
Lift
+45 mm
Load rating
Heavy
Added load
300–600 kg
Leaves
6 + 2
Heavy leaf springs suit a Hilux that is loaded all the time – with a canopy, drawer system, toolboxes or touring gear. The rear does not sag, the vehicle is more stable and ground clearance is maintained.

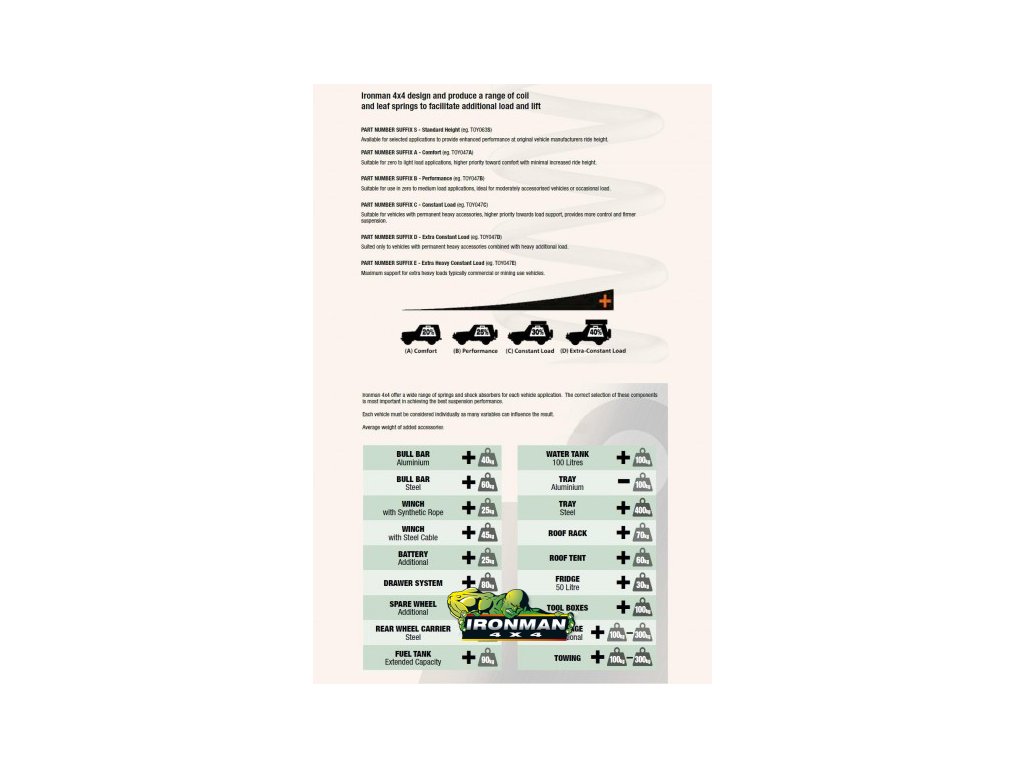

ℹ️ The manufacturer has renamed its load ratings: Heavy = formerly Constant Load.
⚠️ Note: if you mostly drive empty or lightly loaded, choose Medium springs (TOY077B) – Heavy would be too firm without a load. For even more load there is Extra Heavy (TOY077D).
You will also need
- ✔Rear U-bolt kit (437UBKL) – uprated leaves are thicker
- ✔Rear polyurethane spring bush kit (767UK)
- ✔Rear non-greasable pins (387-1) – the manufacturer notes the OEM pins may need cutting for removal
Technical data
| Type | rear leaf springs |
| Estimated lift | 45 mm |
| Added load capacity | 300–600 kg |
| Number of leaves | 6 + 2 |
| Leaf width | 60 mm |
| Length A / B | 700 / 700 mm |
| Camber | 170 mm |
| Eye A / B | 40 / 30 mm |
| Manufacturer code | TOY077C |
Suits
Toyota Hilux Revo (8th gen, AN120/AN130), 2015 onwards.
Qty required: 2 pcs · Price for: 1 pc
Ironman 4x4 Slovakia
The official Ironman 4x4 importer for Slovakia and the Czech Republic for 25 years. We are happy to help you choose the right parts and can also arrange fitting.
Additional parameters
| Category: | Suspension |
|---|---|
| Weight: | 35 kg |
| MODEL: | HILUX REVO 2015 » |
| ZNACKA: | TOYOTA |
